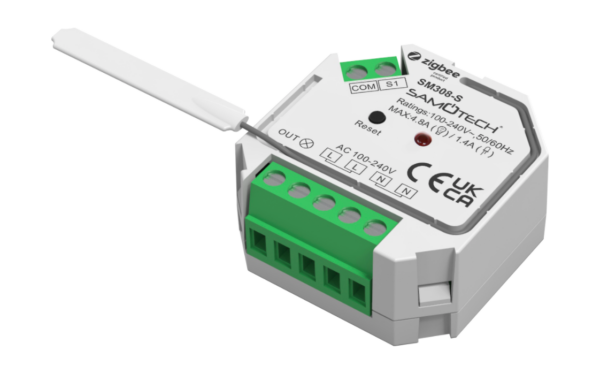

SAMOTECH Dimmer Module Switch – 1Load

• ZigBee AC phase cut dimmer based on latest ZigBee 3.0 protocol • Compatible with Philips Hue, Homekit, Echo Plus, Hubitat, Homeassistant (ZHA, deConz, Conbee, Raspbee) and other universal Zigbee gateways • 100-240VAC Wide Input and Output Voltage • Supports resistive loads, capacitive loads or inductive loads. Requires a retractive switch to operate • 1 Channel Output, Up to 400W • Input and Output with Screw Terminals, Safe and Reliable • Trailing edge version pre-set by factory setting • Enables to control ON/OFF and light intensity of connected light source • ZigBee end device that supports Touchlink commissioning • Can directly pair to a compatible Zigbee remote via Touchlink without coordinator • Supports self-forming Zigbee network without coordinator and add other devices to the network • Supports find and bind mode to bind a ZigBee remote • Supports Zigbee green power and can bind max. 20 Zigbee green power remotes • Mini Size, Easy to be Installed into a standard 86*86mm wall box • Active power and energy metering functionality • Can be wired with or without the neutral wire • Innovative minimum dimming level and startup brightness setting function • Implemented algorithm of smart light source detection • Radio Frequency : 2.4GHz • Waterproof grade: IP20 Categories: Dimmers & Switches, Smart Home
